As a supplier of SS 304 square pipes, I often encounter inquiries regarding various technical aspects of our products. One of the most frequently asked questions is about the thermal expansion coefficient of SS 304 square pipes. In this blog post, I aim to provide a comprehensive understanding of this crucial property and its implications for practical applications.
Understanding Thermal Expansion
Before delving into the specific thermal expansion coefficient of SS 304 square pipes, it's essential to grasp the concept of thermal expansion itself. Thermal expansion is the tendency of matter to change in shape, area, and volume in response to a change in temperature. When a material is heated, its atoms or molecules gain energy and start to vibrate more vigorously, causing the material to expand. Conversely, when cooled, the material contracts as the atoms or molecules lose energy and their vibrations decrease.
This phenomenon is a fundamental characteristic of all materials, including metals like stainless steel. The degree of expansion or contraction is quantified by the thermal expansion coefficient, which is defined as the fractional change in length or volume per unit change in temperature.
Thermal Expansion Coefficient of SS 304
SS 304, also known as AISI 304, is a widely used austenitic stainless steel grade. It is valued for its excellent corrosion resistance, good formability, and high strength. The thermal expansion coefficient of SS 304 is typically reported as approximately 17.2 x 10^-6 /°C (or 9.6 x 10^-6 /°F) over a temperature range of 20 to 100°C (68 to 212°F). This means that for every 1°C increase in temperature, a 1-meter length of SS 304 square pipe will expand by about 0.0000172 meters (or 17.2 micrometers).
It's important to note that the thermal expansion coefficient is not a constant value and can vary depending on several factors, including the exact chemical composition of the material, the temperature range, and the presence of any internal stresses or microstructural changes. For example, the thermal expansion coefficient of SS 304 may increase slightly at higher temperatures.
Implications for SS 304 Square Pipe Applications
The thermal expansion coefficient of SS 304 square pipes has significant implications for their use in various applications. Here are some key considerations:
Piping Systems
In piping systems, thermal expansion can cause stress and strain on the pipes and their connections. If not properly accounted for, this can lead to pipe failure, leaks, or damage to other components in the system. To accommodate thermal expansion, engineers often incorporate expansion joints, flexible connectors, or loops in the piping design. These devices allow the pipes to expand and contract freely without causing excessive stress.
For example, in a hot water distribution system using SS 304 square pipes, the pipes will expand as the water temperature increases. If the system does not have adequate expansion provisions, the pipes may buckle or the joints may leak. By installing expansion joints at appropriate intervals, the system can safely handle the thermal expansion and prevent damage.
Structural Applications
In structural applications, such as building frames or bridges, thermal expansion can also affect the integrity and performance of the structure. The expansion and contraction of SS 304 square pipes due to temperature changes can cause dimensional changes in the structure, which may lead to misalignments, cracks, or other structural problems.
To address these issues, designers typically consider the thermal expansion coefficient when designing the structure and select appropriate materials and construction methods. For instance, they may use flexible connections or allow for some movement in the structure to accommodate thermal expansion. Additionally, they may perform thermal analysis to predict the behavior of the structure under different temperature conditions and ensure its safety and stability.
Welding and Fabrication
During welding and fabrication processes, the thermal expansion and contraction of SS 304 square pipes can also pose challenges. When a pipe is welded, the heat generated by the welding process causes the surrounding material to expand. As the material cools, it contracts, which can result in residual stresses and distortion in the pipe.
To minimize these effects, welders often use preheating and post-weld heat treatment techniques. Preheating helps to reduce the temperature gradient between the weld area and the surrounding material, thereby reducing the thermal stress. Post-weld heat treatment can relieve the residual stresses and improve the mechanical properties of the welded joint.
Comparing SS 304 with Other Stainless Steel Grades
It's also interesting to compare the thermal expansion coefficient of SS 304 with other commonly used stainless steel grades. For example, 316 Stainless Square Tube, another popular austenitic stainless steel grade, has a slightly lower thermal expansion coefficient than SS 304. The thermal expansion coefficient of 316 stainless steel is approximately 16 x 10^-6 /°C (or 8.9 x 10^-6 /°F) over the same temperature range of 20 to 100°C.
This difference in thermal expansion coefficient can be important in applications where precise dimensional control is required or where the temperature variations are significant. For instance, in a high-temperature environment, a structure made of 316 stainless steel may experience less thermal expansion and contraction compared to one made of SS 304, which could result in better dimensional stability.
Our SS 304 Square Pipe Offerings

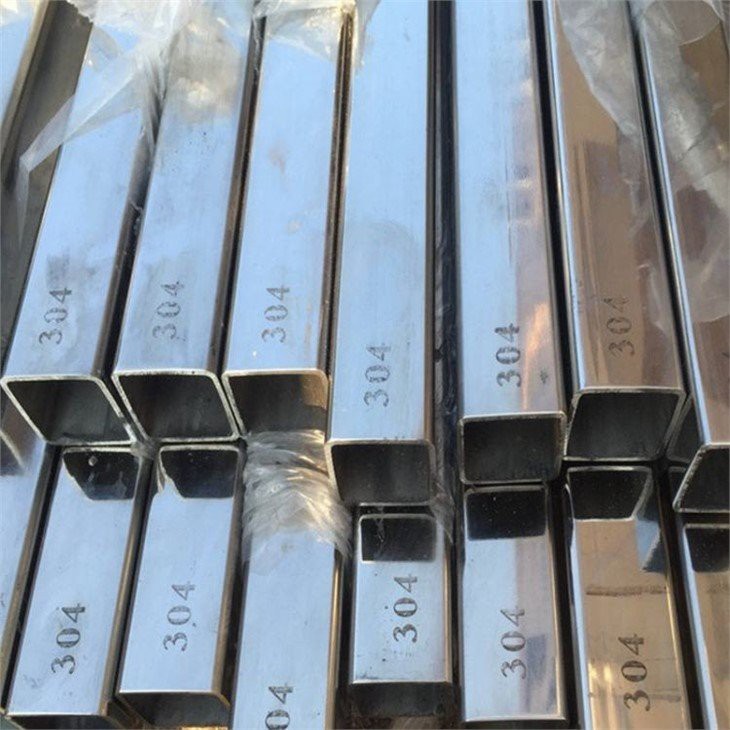

As a supplier of Sqaure Ss Pipe and Stainless Square Pipe, we offer a wide range of SS 304 square pipes in various sizes and thicknesses. Our pipes are manufactured to the highest quality standards and are suitable for a diverse range of applications, including industrial, commercial, and residential projects.
We understand the importance of the thermal expansion coefficient and its impact on the performance of our products. That's why we work closely with our customers to provide technical support and guidance on the selection and installation of our SS 304 square pipes. Whether you need pipes for a simple plumbing system or a complex structural application, we have the expertise and resources to meet your needs.
Contact Us for Procurement and Consultation
If you're interested in purchasing SS 304 square pipes or have any questions about their thermal expansion coefficient or other technical aspects, we'd love to hear from you. Our team of experts is ready to assist you with your procurement needs and provide you with the information and support you require.
Don't hesitate to reach out to us for a quote or to discuss your project requirements in detail. We look forward to the opportunity to work with you and help you achieve your goals.
References
- ASM Handbook, Volume 1: Properties and Selection: Irons, Steels, and High-Performance Alloys. ASM International.
- Stainless Steel Handbook, 5th Edition. Nickel Institute.
- Welding of Stainless Steels and Other Joining Methods. The Welding Institute.
